X-Ray Facility Equipment

• For high-resolution determination of crystallographic structure, phase composition, and texture at ambient and high temperatures, this instrument includes:
• Nickel filter
• Göbel Mirror and Germanium primary monochromator
• Non-ambient temperature stages (-180°C to 1600°C)
• NaI(Tl) scintillation detector
• Hi-Star area detector

View current instrument status.

• 600W generator
• One dimensional D/teX Ultra high-speed detector (very quick scans)
• Scintillating point detector with graphite monochromator (best for resolution)
• Multiple-sample loading capability
• Zero-loss holders

View current instrument status.

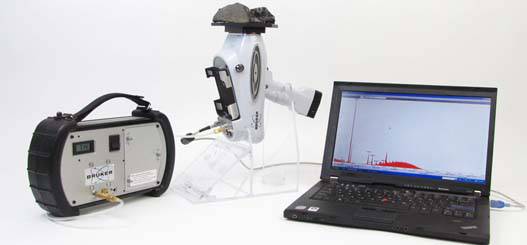

• Peltier-cooled 10 mm² SDD
• Typical resolution: 145 eV at 100,000 cps
• Vacuum pump attachment for enhanced light-element sensitivity
• Gas-flow chamber for the measurement of gases down to Ne

View current instrument status for Tracer III SD.
